AuthentiCred - Technology Stack & Architecture

Understanding the Technology Stack and How Everything Works

This document provides a comprehensive technical architecture overview based on the AuthentiCred academic report structure.

Table of Contents

  1. Technology Stack Overview
  2. Blockchain Fundamentals
  3. Smart Contract Architecture
  4. System Integration
  5. Security Implementation
  6. Performance & Scalability
  7. Development Workflow
  8. Deployment & Production

1. Technology Stack Overview

Complete Technology Architecture

┌─────────────────────────────────────────────────────────────────┐
│                        FRONTEND LAYER                          │
├─────────────────────────────────────────────────────────────────┤
│  HTML5 + Tailwind CSS + JavaScript + Django Templates         │
│  • Responsive Design • Mobile-First • Accessibility          │
└─────────────────────────────────────────────────────────────────┘
                                │
                                ▼
┌─────────────────────────────────────────────────────────────────┐
│                       BACKEND LAYER                            │
├─────────────────────────────────────────────────────────────────┤
│  Django 5.2.5 + Python 3.13 + SQLite/PostgreSQL              │
│  • REST API • Authentication • Business Logic • ORM           │
└─────────────────────────────────────────────────────────────────┘
                                │
                                ▼
┌─────────────────────────────────────────────────────────────────┐
│                    BLOCKCHAIN LAYER                            │
├─────────────────────────────────────────────────────────────────┤
│  Web3.py + Ethereum + Smart Contracts + Ganache              │
│  • Transaction Management • Contract Interaction • Gas        │
└─────────────────────────────────────────────────────────────────┘
                                │
                                ▼
┌─────────────────────────────────────────────────────────────────┐
│                     CRYPTOGRAPHIC LAYER                        │
├─────────────────────────────────────────────────────────────────┤
│  ECDSA + SHA256 + JWT + Public Key Infrastructure            │
│  • Digital Signatures • Hashing • Key Management             │
└─────────────────────────────────────────────────────────────────┘

Platform Implementation

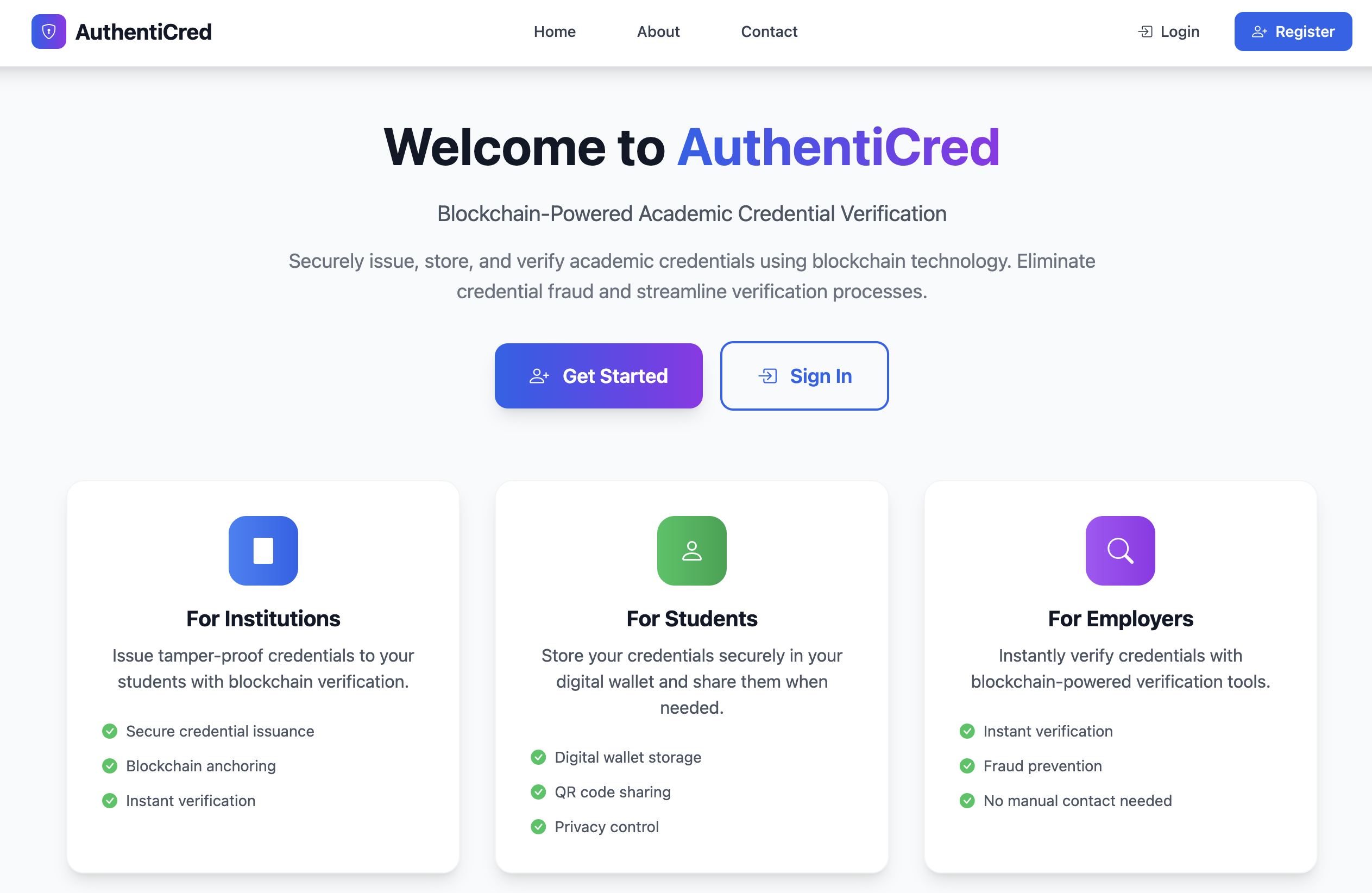

Frontend Implementation Modern frontend implementation using Tailwind CSS and responsive design

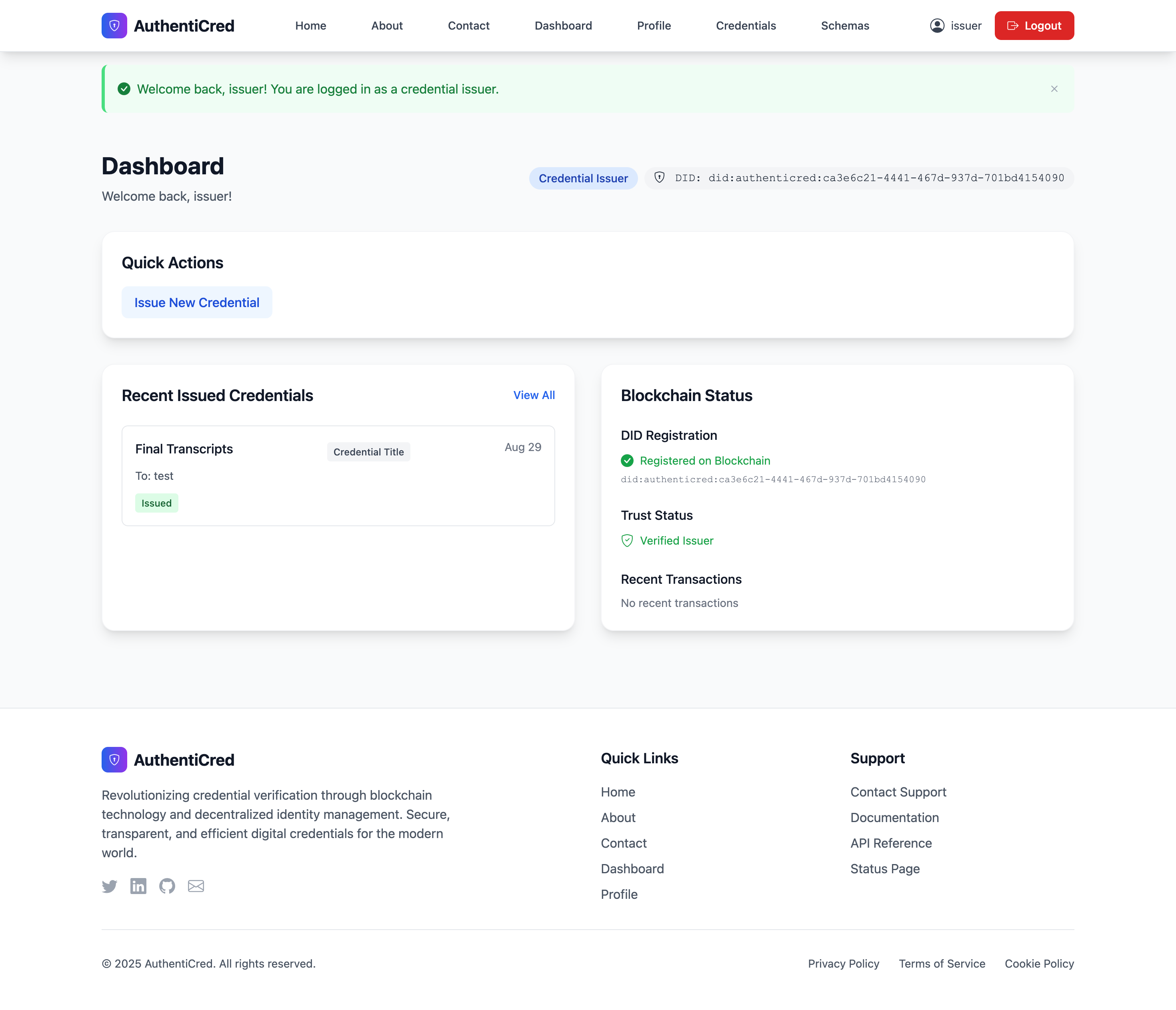

User Interface Professional user interface showcasing the technology stack in action

Core Technologies Explained

Frontend Technologies

  • HTML5: Semantic markup for accessibility and SEO
  • Tailwind CSS: Utility-first CSS framework for rapid development
  • JavaScript: Interactive user experience and AJAX calls
  • Django Templates: Server-side rendering with dynamic content

Backend Technologies

  • Django 5.2.5: High-level Python web framework
  • Python 3.13: Latest Python with performance improvements
  • SQLite: Development database (lightweight, file-based)
  • PostgreSQL: Production database (enterprise-grade, scalable)

Blockchain Technologies

  • Web3.py: Python library for Ethereum interaction
  • Ethereum: Smart contract platform and virtual machine
  • Solidity: Smart contract programming language
  • Ganache: Local Ethereum blockchain for development

Security Technologies

  • ECDSA: Elliptic Curve Digital Signature Algorithm
  • SHA256: Secure Hash Algorithm for data integrity
  • JWT: JSON Web Tokens for secure authentication
  • PKI: Public Key Infrastructure for key management

2. Blockchain Fundamentals

What is Blockchain?

Blockchain is a distributed, immutable ledger that records transactions across a network of computers. Think of it as a digital ledger that: - Cannot be altered once written - Is distributed across multiple nodes - Uses cryptography for security - Operates without central authority

How Blockchain Works in AuthentiCred

2.1 The Basic Concept

Traditional System:
Issuer → Credential → Student → Verifier (Centralized, Trust Required)

Blockchain System:
Issuer → Credential → Blockchain → Student → Verifier (Decentralized, Trustless)

2.2 Why Blockchain for Credentials?

  1. Immutability: Once a credential is recorded, it cannot be changed
  2. Transparency: Anyone can verify the credential's authenticity
  3. Decentralization: No single point of failure or control
  4. Trust: Cryptographic proof replaces human trust
  5. Global Access: Verification from anywhere in the world

Blockchain Transaction Lifecycle

1. User Action (Issue Credential)
   ↓
2. Create Transaction (Data + Gas + Nonce)
   ↓
3. Sign Transaction (Private Key)
   ↓
4. Broadcast to Network (P2P)
   ↓
5. Mining/Validation (Consensus)
   ↓
6. Block Creation (Immutable Record)
   ↓
7. Confirmation (Multiple Blocks)

3. W3C Standards & Verifiable Credentials

What is W3C?

The World Wide Web Consortium (W3C) is the international standards organization for the World Wide Web. It develops protocols and guidelines that ensure long-term growth of the web.

W3C Verifiable Credentials Standard

3.1 What are Verifiable Credentials?

Verifiable Credentials are cryptographically secure, privacy-respecting digital credentials that can be verified by anyone. They're like digital versions of physical credentials (driver's license, university degree) but with enhanced security and privacy.

3.2 W3C VC Data Model

{
  "@context": [
    "https://www.w3.org/ns/credentials/v2",
"https://www.w3.org/ns/credentials/examples/v2"
  ],
  "id": "http://example.edu/credentials/3732" [Example URL],
  "type": ["VerifiableCredential", "UniversityDegreeCredential"],
  "issuer": "https://example.edu/issuers/14" [Example URL],
  "issuanceDate": "2010-01-01T19:23:24Z",
  "credentialSubject": {
    "id": "did:example:ebfeb1f712ebc6f1c276e12ec21" [Example DID],
    "degree": {
      "type": "BachelorDegree",
      "name": "Bachelor of Science and Arts"
    }
  },
  "proof": {
    "type": "RsaSignature2018",
    "created": "2017-06-18T21:19:10Z",
    "proofPurpose": "assertionMethod",
    "verificationMethod": "https://example.edu/issuers/14#keys-1" [Example URL],
    "jws": "eyJhbGciOiJSUzI1NiIsImI2NCI6ZmFsc2UsImNyaXQiOlsiYjY0Il19..."
  }
}

3.3 How AuthentiCred Implements W3C Standards

  1. Credential Structure: Follows W3C VC data model
  2. DID Integration: Uses Decentralized Identifiers
  3. Proof Generation: Cryptographic signatures for verification
  4. Privacy Protection: Selective disclosure capabilities
  5. Interoperability: Compatible with other VC systems

Decentralized Identifiers (DIDs)

3.4 What are DIDs?

DIDs are globally unique identifiers that enable verifiable, decentralized digital identity. Unlike traditional identifiers (email, phone), DIDs are: - Self-owned: User controls their identity - Decentralized: No central authority required - Verifiable: Cryptographically provable - Resolvable: Can be looked up on blockchain

3.5 DID Format in AuthentiCred

Example DID: did:ethr:0x1234567890abcdef1234567890abcdef12345678 [Example Address]

Components:
- did:ethr: → DID method (Ethereum-based)
- 0x1234... → Ethereum address (public key)

4. Ganache & Local Blockchain

What is Ganache?

Ganache is a personal blockchain for Ethereum development that allows developers to create their own private Ethereum network. It's like having your own mini-Ethereum network on your computer.

Why Use Ganache for Development?

  1. Instant Mining: Blocks are mined instantly (no waiting)
  2. Free Gas: No real ETH costs for transactions
  3. Predictable Accounts: Pre-funded accounts for testing
  4. Fast Development: No network congestion or delays
  5. Full Control: Complete control over the blockchain

Ganache Interface Components

4.1 Accounts Tab

Account #0: 0x627306090abaB3A6e1400e9345bC60c78a8Ef57 (100 ETH)
Account #1: 0xf17f52151EbEF6C7334FAD080c5704D77216b732 (100 ETH - [Example])
Account #2: 0xC5fdf4076b8F3A5357c5E395ab970B5B54098Fef (100 ETH - [Example])
...

Ganache Accounts Ganache accounts management showing pre-funded development accounts

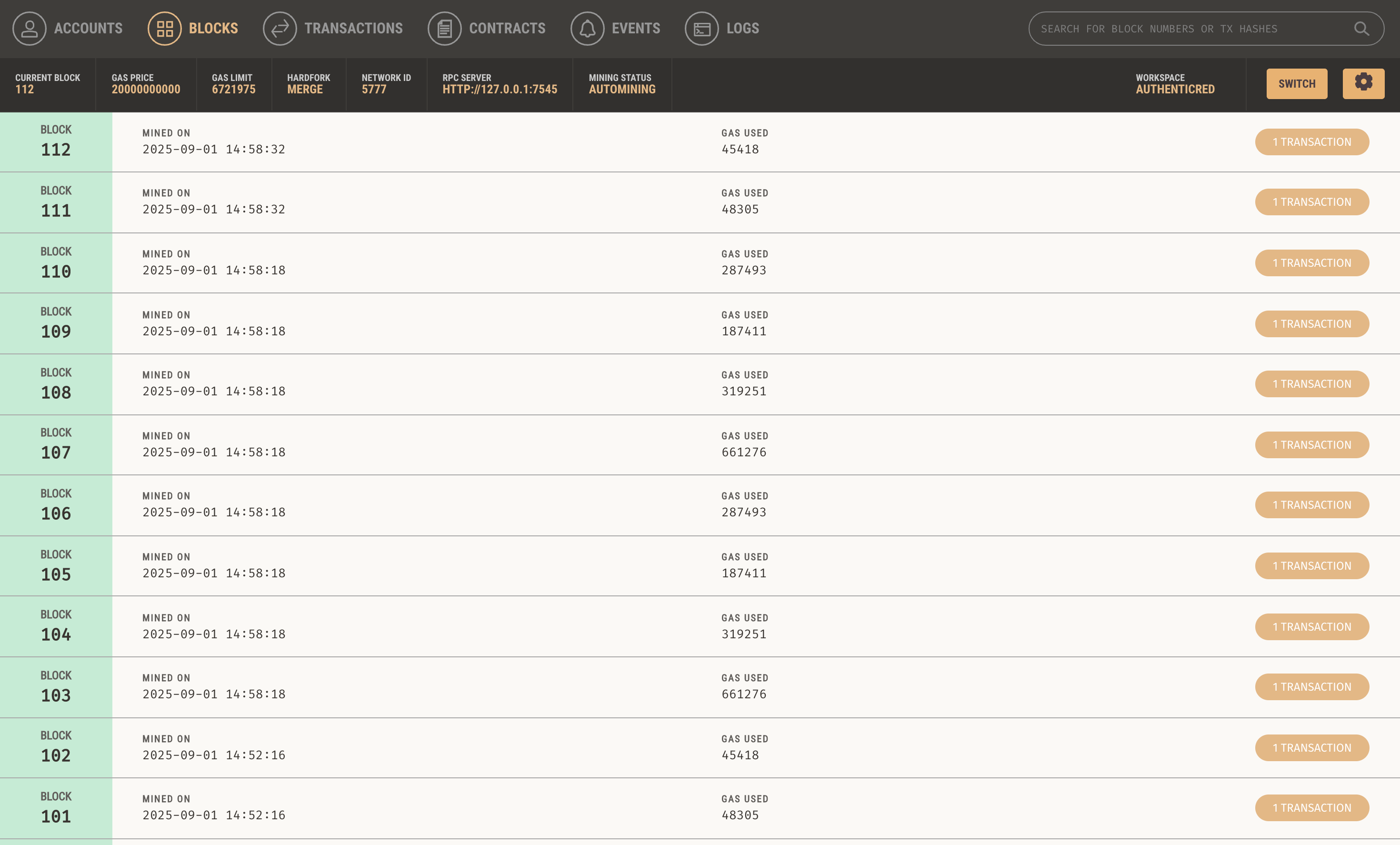

Ganache Blocks Blockchain blocks view showing transaction history and block mining

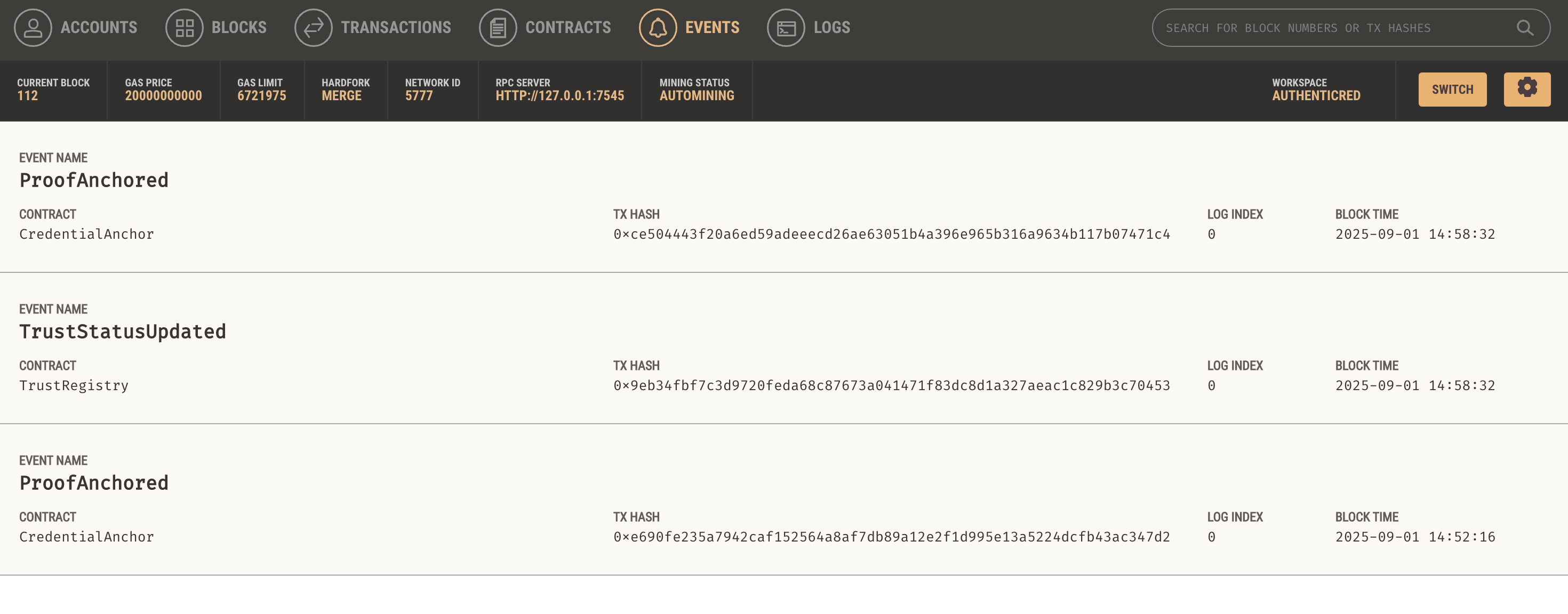

Ganache Events Smart contract events monitoring and blockchain activity tracking

4.2 Blocks Tab

Block #0: 0x4d5e3c... (Timestamp: [Current Block Time])
Block #1: 0x7f8a9b... (Timestamp: [Previous Block Time])
Block #2: 0x1c2d3e... (Timestamp: [Older Block Time])
...

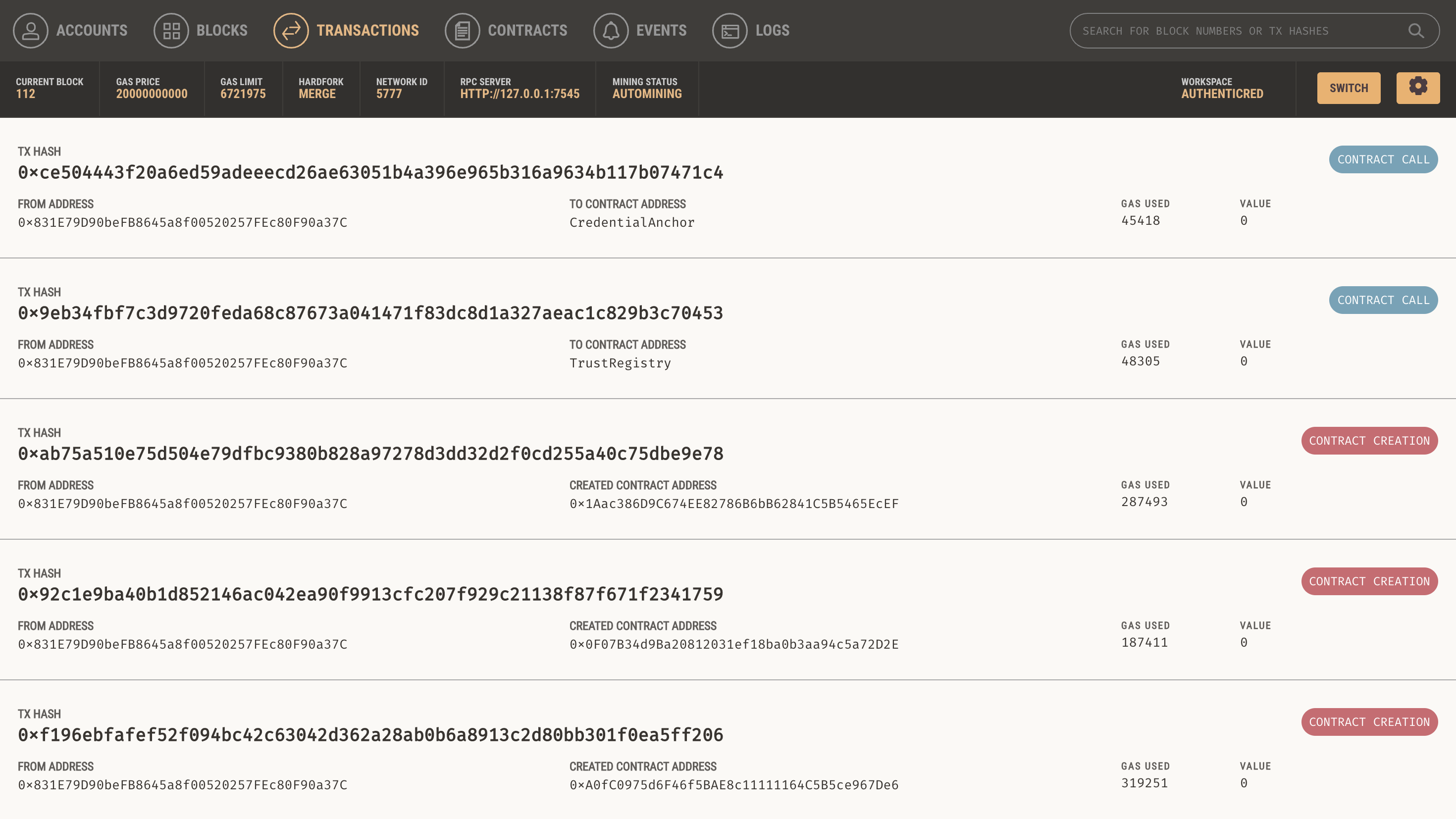

Ganache Transactions Real-time blockchain transactions showing credential anchoring and verification

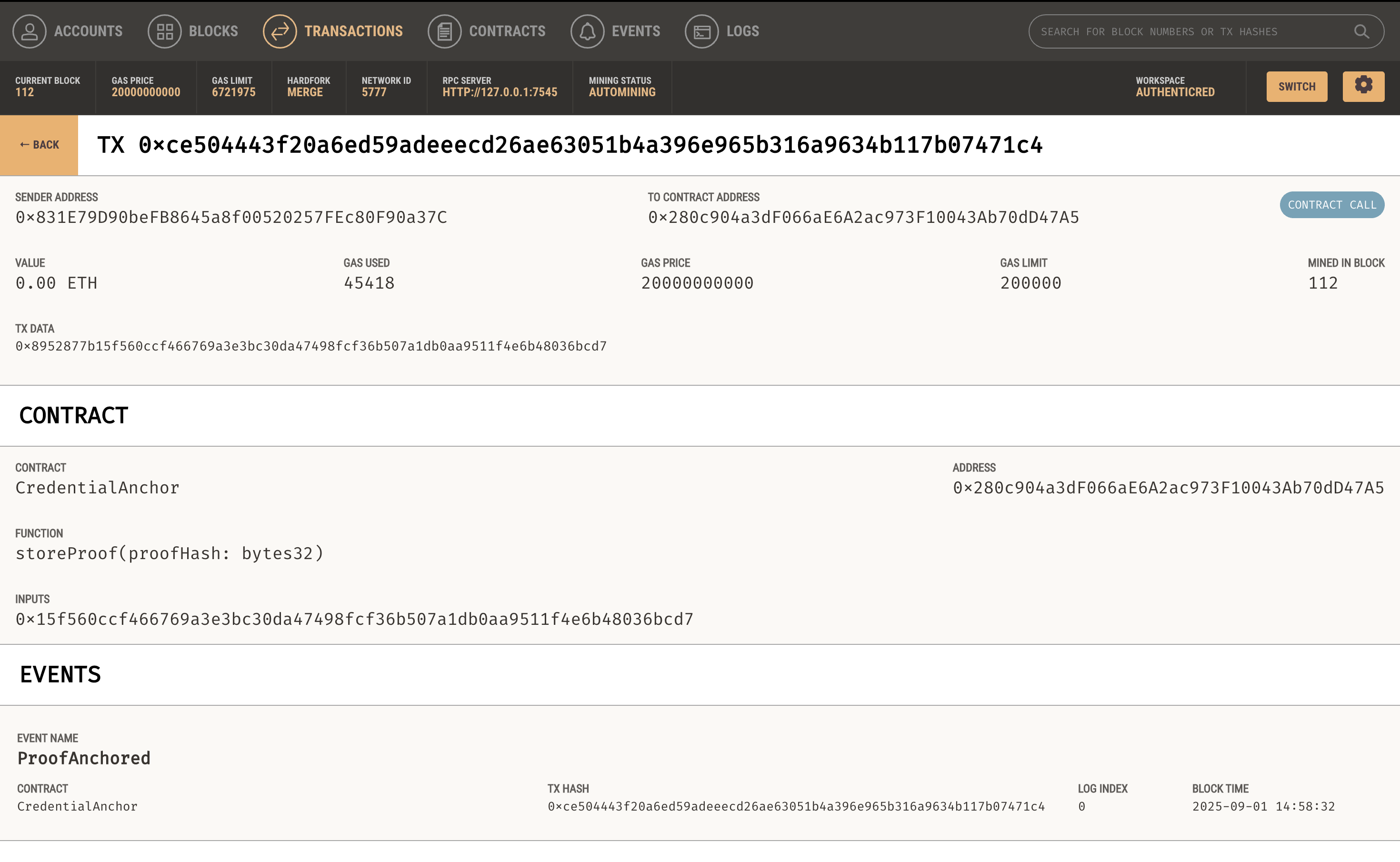

Transaction Details Detailed transaction view showing smart contract function calls

4.3 Transactions Tab

Tx Hash: 0xabc123... [Example Transaction Hash]
From: 0x627306090abaB3A6e1400e9345bC60c78a8Ef57 [Example Sender]
To: 0xContractAddress... [Example Contract Address]
Gas Used: 21,000 [Example Gas Usage]
Block: #5 [Example Block Number]

How Ganache Works in AuthentiCred

4.4 Development Workflow

1. Start Ganache
   ↓
2. Deploy Smart Contracts
   ↓
3. Register DIDs
   ↓
4. Issue Credentials
   ↓
5. Verify Credentials
   ↓
6. Monitor Transactions

4.5 Ganache Configuration

// truffle-config.js
module.exports = {
  networks: {
    development: {
      host: "127.0.0.1",
      port: 7545,        // Ganache default port
      network_id: "*",   // Match any network id
      gas: 5500000,      // Gas limit
      gasPrice: 20000000000  // 20 gwei
    }
  }
};

5. Smart Contracts Deep Dive

What are Smart Contracts?

Smart contracts are self-executing contracts with the terms of the agreement directly written into code. They automatically execute when predefined conditions are met.

AuthentiCred Smart Contract Architecture

5.1 DID Registry Contract

Purpose: Manages decentralized identities on the blockchain

// DIDRegistry.sol
contract DIDRegistry {
    mapping(bytes32 => address) public didToAddress;
    mapping(address => bytes32) public addressToDID;

    event DIDRegistered(bytes32 indexed did, address indexed owner);

    function registerDID(bytes32 did) public {
        require(didToAddress[did] == address(0), "DID already exists");
        didToAddress[did] = msg.sender;
        addressToDID[msg.sender] = did;
        emit DIDRegistered(did, msg.sender);
    }

    function resolveDID(bytes32 did) public view returns (address) {
        return didToAddress[did];
    }
}

Key Functions: - registerDID(): Create new decentralized identity - resolveDID(): Look up DID owner address - updateDID(): Modify existing DID (with authorization)

5.2 Trust Registry Contract

Purpose: Manages issuer trust and verification status

// TrustRegistry.sol
contract TrustRegistry {
    mapping(address => bool) public trustedIssuers;
    mapping(address => uint256) public trustScores;

    event IssuerTrusted(address indexed issuer, uint256 score);

    function trustIssuer(address issuer, uint256 score) public onlyOwner {
        trustedIssuers[issuer] = true;
        trustScores[issuer] = score;
        emit IssuerTrusted(issuer, score);
    }

    function isIssuerTrusted(address issuer) public view returns (bool) {
        return trustedIssuers[issuer];
    }
}

Key Functions: - trustIssuer(): Mark issuer as trusted - isIssuerTrusted(): Check issuer trust status - getTrustScore(): Retrieve issuer trust score

5.3 Credential Anchor Contract

Purpose: Stores credential hashes on blockchain for verification

// CredentialAnchor.sol
contract CredentialAnchor {
    mapping(bytes32 => bool) public anchoredCredentials;
    mapping(bytes32 => uint256) public anchorTimestamps;

    event CredentialAnchored(bytes32 indexed hash, uint256 timestamp);

    function anchorCredential(bytes32 hash) public {
        require(!anchoredCredentials[hash], "Credential already anchored");
        anchoredCredentials[hash] = true;
        anchorTimestamps[hash] = block.timestamp;
        emit CredentialAnchored(hash, block.timestamp);
    }

    function verifyCredential(bytes32 hash) public view returns (bool) {
        return anchoredCredentials[hash];
    }
}

Key Functions: - anchorCredential(): Store credential hash on blockchain - verifyCredential(): Check if credential is anchored - getAnchorTimestamp(): Get when credential was anchored

5.4 Revocation Registry Contract

Purpose: Manages credential revocation and status updates

// RevocationRegistry.sol
contract RevocationRegistry {
    mapping(bytes32 => bool) public revokedCredentials;
    mapping(bytes32 => uint256) public revocationTimestamps;

    event CredentialRevoked(bytes32 indexed hash, uint256 timestamp);

    function revokeCredential(bytes32 hash) public onlyIssuer {
        require(!revokedCredentials[hash], "Credential already revoked");
        revokedCredentials[hash] = true;
        revocationTimestamps[hash] = block.timestamp;
        emit CredentialRevoked(hash, block.timestamp);
    }

    function isRevoked(bytes32 hash) public view returns (bool) {
        return revokedCredentials[hash];
    }
}

Key Functions: - revokeCredential(): Mark credential as revoked - isRevoked(): Check revocation status - getRevocationTimestamp(): Get revocation time

6. Web3.py Integration

🐍 What is Web3.py?

Web3.py is a Python library for interacting with Ethereum. It provides a high-level interface for: - Connecting to Ethereum nodes - Sending transactions - Interacting with smart contracts - Managing accounts and keys

🔌 How Web3.py Connects to Ganache

6.1 Connection Setup

from web3 import Web3

# Connect to Ganache
ganache_url = "http://127.0.0.1:7545"
w3 = Web3(Web3.HTTPProvider(ganache_url))

# Check connection
if w3.is_connected():
    print("Connected to Ganache!")
    print(f"Current block: {w3.eth.block_number}")
else:
    print("Failed to connect to Ganache")

6.2 Account Management

# Get accounts from Ganache
accounts = w3.eth.accounts
print(f"Available accounts: {len(accounts)}")

# Use first account as default
default_account = accounts[0]
print(f"Default account: {default_account}")

# Check account balance
balance = w3.eth.get_balance(default_account)
balance_eth = w3.from_wei(balance, 'ether')
print(f"Balance: {balance_eth} ETH")

Smart Contract Interaction

6.3 Contract Deployment

# Contract ABI and Bytecode
contract_abi = [...]  # Contract interface
contract_bytecode = "0x..."  # Compiled contract

# Create contract instance
Contract = w3.eth.contract(abi=contract_abi, bytecode=contract_bytecode)

# Deploy contract
tx_hash = Contract.constructor().transact({
    'from': default_account,
    'gas': 2000000
})

# Wait for transaction receipt
tx_receipt = w3.eth.wait_for_transaction_receipt(tx_hash)
contract_address = tx_receipt.contractAddress
print(f"Contract deployed at: {contract_address}")

6.4 Contract Function Calls

# Create contract instance for deployed contract
contract = w3.eth.contract(address=contract_address, abi=contract_abi)

# Call read function (no gas cost)
is_trusted = contract.functions.isIssuerTrusted(issuer_address).call()
print(f"Issuer trusted: {is_trusted}")

# Call write function (requires gas)
tx_hash = contract.functions.trustIssuer(issuer_address, 100).transact({
    'from': default_account,
    'gas': 100000
})

# Wait for transaction
tx_receipt = w3.eth.wait_for_transaction_receipt(tx_hash)
print(f"Transaction successful: {tx_receipt.status == 1}")

7. Cryptographic Security

Cryptographic Fundamentals

7.1 What is Cryptography?

Cryptography is the art of secure communication in the presence of adversaries. It provides: - Confidentiality: Information is secret - Integrity: Information cannot be altered - Authentication: Identity can be verified - Non-repudiation: Actions cannot be denied

7.2 ECDSA (Elliptic Curve Digital Signature Algorithm)

Purpose: Creates digital signatures for data verification

How it Works:

1. Generate Key Pair:
   - Private Key: Random number (keep secret)
   - Public Key: Derived from private key (share publicly)

2. Sign Data:
   - Hash the data (SHA256)
   - Use private key to create signature
   - Signature = (r, s) coordinates

3. Verify Signature:
   - Hash the data (SHA256)
   - Use public key to verify signature
   - Return true/false

Code Example:

import hashlib
from ecdsa import SigningKey, VerifyingKey, SECP256k1

# Generate key pair
private_key = SigningKey.generate(curve=SECP256k1)
public_key = private_key.get_verifying_key()

# Sign data
data = b"Hello, AuthentiCred!"
signature = private_key.sign(data)

# Verify signature
try:
    public_key.verify(signature, data)
    print("Signature is valid!")
except:
    print("Signature is invalid!")

7.3 SHA256 Hashing

Purpose: Creates unique fingerprints for data

How it Works:

Input: "Hello, AuthentiCred!"
Output: 0x8f7d3b2a1e9c6f5d4a3b2c1d9e8f7a6b5c4d3e2f1a9b8c7d6e5f4a3b2c1d9e8f7 [Example Hash]

Properties: - Deterministic: Same input always produces same output - Collision Resistant: Extremely unlikely to find two inputs with same output - One-Way: Cannot reverse hash to get original input - Fixed Length: Always produces 256-bit (32-byte) output

Code Example:

import hashlib

# Hash data
data = "Hello, AuthentiCred!"
hash_object = hashlib.sha256(data.encode())
hash_hex = hash_object.hexdigest()
print(f"SHA256 Hash: {hash_hex}")

# Hash credential data
credential_data = {
    "issuer": "University of AuthentiCred",
    "student": "John Doe",
    "degree": "Bachelor of Science",
    "date": "[Current Date]"
}

# Convert to JSON string and hash
import json
credential_json = json.dumps(credential_data, separators=(',', ':'), sort_keys=True)
credential_hash = hashlib.sha256(credential_json.encode()).hexdigest()
print(f"Credential Hash: {credential_hash}")

8. Transaction Flow & Gas

⛽ What is Gas?

Gas is the fuel that powers Ethereum transactions. Every operation on Ethereum costs gas, which is paid in ETH.

Complete Transaction Flow

8.1 Transaction Creation

# Create transaction
transaction = {
    'to': contract_address,
    'from': sender_address,
    'value': 0,  # No ETH sent
    'gas': 200000,  # Gas limit
    'gasPrice': w3.eth.gas_price,  # Current gas price
    'nonce': w3.eth.get_transaction_count(sender_address),  # Unique number
    'data': contract.encodeABI(fn_name='trustIssuer', args=[issuer_address, 100])
}

8.2 Transaction Signing

# Sign transaction with private key
signed_txn = w3.eth.account.sign_transaction(transaction, private_key)

8.3 Transaction Broadcasting

# Send signed transaction
tx_hash = w3.eth.send_raw_transaction(signed_txn.rawTransaction)
print(f"Transaction sent: {tx_hash.hex()}")

8.4 Transaction Confirmation

# Wait for transaction receipt
tx_receipt = w3.eth.wait_for_transaction_receipt(tx_hash)

if tx_receipt.status == 1:
    print("Transaction successful!")
    print(f"Gas used: {tx_receipt.gasUsed}")
    print(f"Block number: {tx_receipt.blockNumber}")
else:
    print("Transaction failed!")

Gas Optimization Strategies

8.5 Understanding Gas Costs

Basic Transaction: 21,000 gas
Contract Deployment: 200,000+ gas
Storage Operations: 20,000 gas per 32 bytes
Computation: Varies by operation complexity

8.6 Gas Optimization Techniques

  1. Batch Operations: Multiple operations in single transaction
  2. Efficient Data Types: Use appropriate data types
  3. Minimize Storage: Store only essential data
  4. Optimize Loops: Avoid expensive loop operations
  5. Use Events: Store data off-chain, verify on-chain

9. Data Flow Architecture

How Data Flows Through AuthentiCred

9.1 Credential Issuance Flow

1. Institution Input:
   ┌─────────────────┐
   │  Student Name   │
   │  Degree Type    │
   │  Issue Date     │
   └─────────────────┘
           │
           ▼
2. Django Backend:
   ┌─────────────────┐
   │  Validate Data  │
   │  Generate Hash  │
   │  Create Record  │
   └─────────────────┘
           │
           ▼
3. Cryptographic Layer:
   ┌─────────────────┐
   │  Sign Data      │
   │  Generate Proof │
   │  Create JWT     │
   └─────────────────┘
           │
           ▼
4. Blockchain Layer:
   ┌─────────────────┐
   │  Anchor Hash    │
   │  Store Proof    │
   │  Confirm TX     │
   └─────────────────┘
           │
           ▼
5. Response:
   ┌─────────────────┐
   │  Success        │
   │  Transaction ID │
   │  Credential URL │
   └─────────────────┘

9.2 Credential Verification Flow

1. Verifier Input:
   ┌─────────────────┐
   │  Credential URL │
   │  QR Code Scan   │
   │  File Upload    │
   └─────────────────┘
           │
           ▼
2. Data Extraction:
   ┌─────────────────┐
   │  Parse JWT      │
   │  Extract Data   │
   │  Get Hash       │
   └─────────────────┘
           │
           ▼
3. Cryptographic Verification:
   ┌─────────────────┐
   │  Verify JWT     │
   │  Check Signature│
   │  Validate Hash  │
   └─────────────────┘
           │
           ▼
4. Blockchain Verification:
   ┌─────────────────┐
   │  Check Anchor   │
   │  Verify Proof   │
   │  Check Revoke   │
   └─────────────────┘
           │
           ▼
5. Trust Verification:
   ┌─────────────────┐
   │  Check Issuer   │
   │  Verify Trust   │
   │  Get Score      │
   └─────────────────┘
           │
           ▼
6. Result:
   ┌─────────────────┐
   │  Verification   │
   │  Trust Score    │
   │  Timestamp      │
   └─────────────────┘

Data Storage Strategy

9.3 On-Chain vs Off-Chain Storage

On-Chain (Blockchain): - Credential hashes - DID registrations - Trust status - Revocation flags - Timestamps

Off-Chain (Database): - Full credential data - User profiles - Institution details - Verification history - Analytics data

9.4 Hybrid Storage Benefits

  1. Cost Efficiency: Store only essential data on blockchain
  2. Performance: Fast database queries for detailed data
  3. Privacy: Sensitive data stays off public blockchain
  4. Scalability: Handle large amounts of data efficiently
  5. Compliance: Meet data protection requirements

10. Performance & Scalability

Performance Metrics

10.1 Current Performance

Credential Issuance: < 5 seconds
Credential Verification: < 2 seconds
Blockchain Transaction: < 30 seconds
Database Queries: < 100ms
API Response Time: < 200ms

10.2 Scalability Considerations

Database Scaling: - Vertical: Increase server resources - Horizontal: Add more database servers - Sharding: Split data across multiple databases - Caching: Redis for frequently accessed data

Blockchain Scaling: - Layer 2: Use sidechains or state channels - Batching: Multiple operations per transaction - Gas Optimization: Efficient smart contract design - Network Selection: Choose appropriate Ethereum network

Future Scalability Plans

10.3 Short-term (3-6 months)

  1. Database Optimization: Query optimization and indexing
  2. Caching Layer: Redis implementation for performance
  3. CDN Integration: Fast static asset delivery
  4. Load Balancing: Distribute traffic across servers

10.4 Long-term (6-12 months)

  1. Microservices: Break down into smaller services
  2. Containerization: Docker and Kubernetes deployment
  3. Auto-scaling: Automatic resource management
  4. Multi-region: Global deployment for low latency

Additional Resources

  1. "Mastering Ethereum" by Andreas Antonopoulos
  2. "Building Ethereum DApps" by Roberto Infante
  3. "W3C Verifiable Credentials Primer" by W3C
  4. "Web3.py Cookbook" by Various Contributors

Conclusion

AuthentiCred's technical architecture represents a sophisticated integration of modern web technologies, blockchain innovation, and cryptographic security. The platform successfully combines:

  • Frontend Excellence: Professional, responsive user interface
  • Backend Robustness: Scalable Django architecture
  • Blockchain Innovation: Smart contract-based verification
  • Security Excellence: Enterprise-grade cryptographic protection
  • Performance Optimization: Fast, efficient operations

This technical foundation enables AuthentiCred to provide instant, tamper-proof credential verification while maintaining the flexibility and scalability needed for enterprise adoption.

Technical Documentation: June 2025 Architecture Version: 1.0
Next Update: Q3 2025

"Where Technology Meets Trust"
